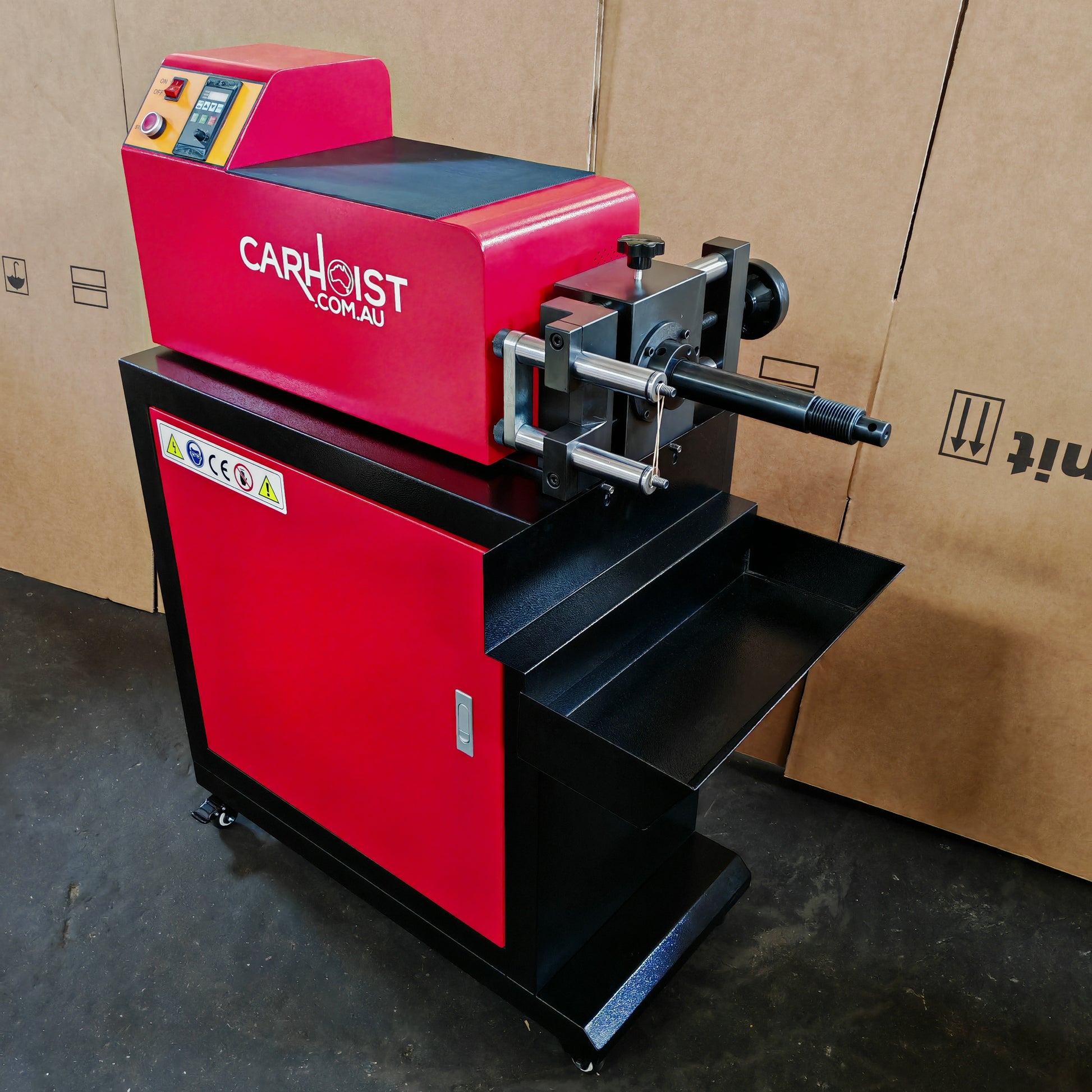

Automatic brake disc machine BL553

• Working height:1m
• Drive speed: 30/200rpm
• Electrical specifications: 240V/50Hz/1ph
• Motor power: 750w
• Max brake disc diameter: 450mm
• Disc thickness: 6-40mm
• Cutting depth per knob: 0.005-0.015mm
• Cutting precision: ≤0.00-0.003mm
• Ambient temperature range: -30 to 60°c
• Brake disc thickness variation: 0.005-0.01mm
• Brake disc surface roughness Ra: Ra 1.5-2.0µm

How to order

• Pick up or contact us for freight quote

Warranty

• 1 year parts and labor (in shop)

Manual
